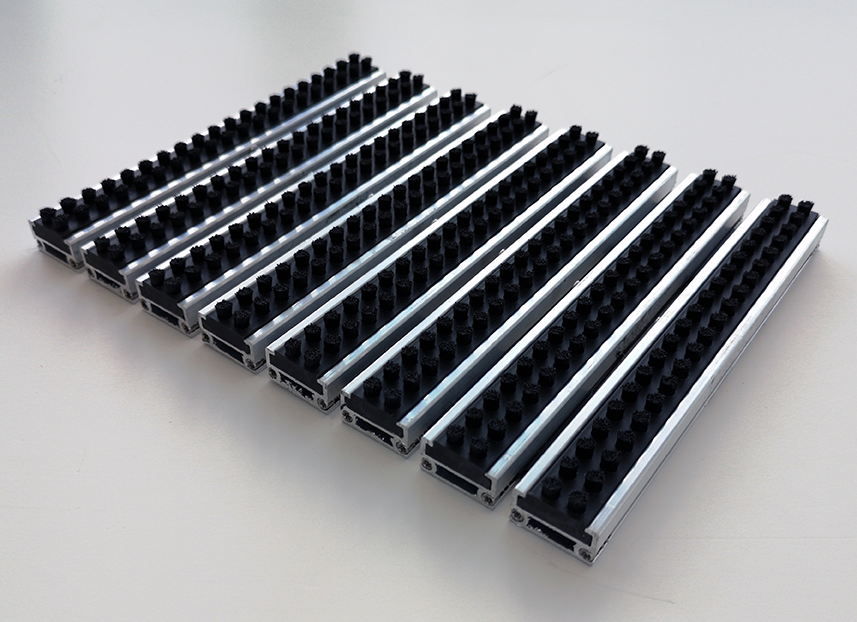

Plate 17 Spazzola

Structure in robust tubular aluminium profiles joined by high resistance thermoplastic perforated or closed channels.
Non-slip certification R-13 according to the DIN 51130 regulation. Space between the slats 7 or 4 mm. Covered with monofilament nylon tufts.
Thickness about 17mm.

Utilizzo
Covered outdoor
Outdoor
Certifications

• More versatile profile
• Strong scraping action for fine dirt
• High non-slip action

Overall thickness17 mm
Weight11 kg/m²
Daily crossingsover 5000
Distance between profilesStandard 7 mm (optional 4 mm)
LigationDraining standard (optional closed)
Profile's height12 mm
Middle section profile1,2 mm
Profile's materialAluminium alloy EN AW-6060 from primary billet
Profile's MAX lenght300 cm - 200 cm for outside
(also evaluable extraordinary lenghts)
Walkway MAX lenght300 cm
(also evaluable extraordinary lenghts)
CoveringSection PA monofilament tufts of nylon 0,3 mm punched on thermoplastic support
Certifications• Certificate of quality ISO 9001-2015
• R-13 according to DIN 51130
Nero

Containing frame in: aluminium, steel and brass
Anodized aluminium finishing-lists
Anodized aluminium antistumbling trailerable ramp
Connectors for entrance mats
Stainless steel containment tanks (optional draining)
Acoustic foam

Go to accessories page

BART (stainless steel bar with laser engraving logo)
Anodizing of aluminium profiles
RAL profiles painting
Special painting

Go to customizations page

To keep the carpets long-lived and working, we recommend to
always check that the housing is levelled and in good condition
and to ensure a thorough cleaning on a weekly basis.
• Aspire the top of the mat, roll it up and remove the dirt
accumulated on the bottom with the help of a stiff bristle and
vacuum cleaner (for draining channel).
• In case of stubborn dirt proceed after the ordinary cleaning with
washing. Using a high pressure washer (at a minimum distance
of 70cm), remove the accumulated dirt between the slats and on
the coating. Allow the mat to dry completely, possibly vertically,
before placing it back in its seat.
• To stain the textile coating, it’s possible to clean the surface of
the mat using warm water, laundry brush and the special soaking
(can be purchased on www.mat-en.com).
In case the coating strips were irreversibly damaged (chewing
gum, oil and cigarette burns) or in case of extreme wear you can
contact the company for partial or total replacement.
It’s possible sanitize the mat with the appropriate specific products
purchasable on www.mat-en.com.

Survey with measures tracking
Installation
Shaping
Sanitation of the product
Maintenance, cleaning and repairs
Coating replacement
Technical consultancy
Graphic draft realization for customized mats
Sampling

Go to services page

Mat.en offers a complete range of products designed for the
maintenance, the cleaning and the sanitation of their products
and the replacement of consumable accessiories

Go to consumable page
Data sheetEntrance Matting System Brochure
